Ph0wnCTF 2026 Intro
Cospas Sarsat 406 Mhz Emergency Beacon [ pts]
## Challenge Description
We are given a wav file beacon.wav with a document related to COSPAS-SARSAT-406-MHz-Emergency-Beacon, our task is to find the flag with a hint Manchester II.
## Solution
So since this is a signal, I use the Universal Radio Hacker to extract the data from wav file.
For the parameters I applied as below:
To calculate the samples per symbol: samples_per_symbol = sample_rate / symbol_rate

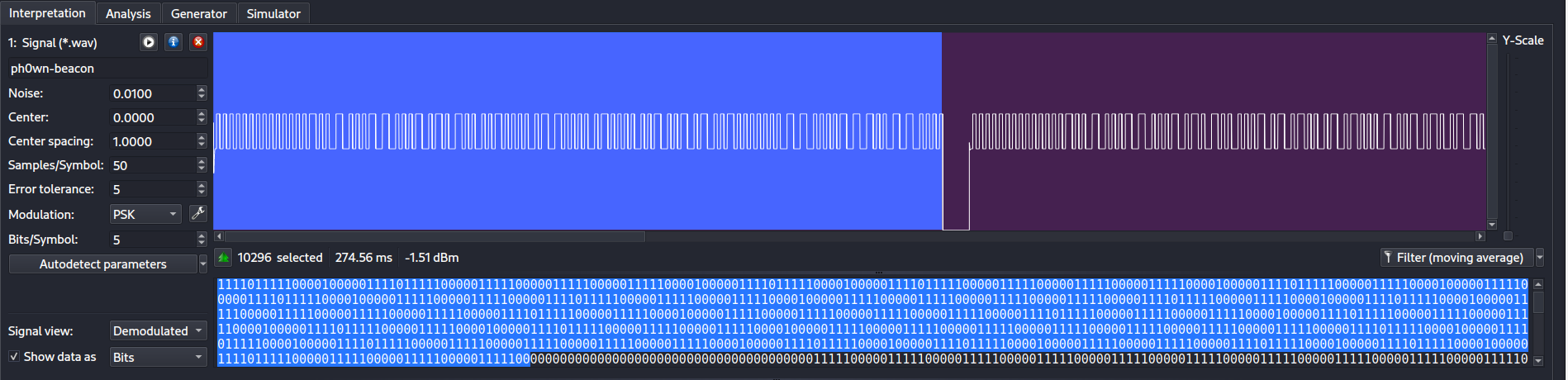

Here sample rate = 20 kHz and symbol rate = 400 bps, samples/symbol ≈ 50. Then we switch to Demodulated view to see the square wave. Each square is either a bit 0 or 1.

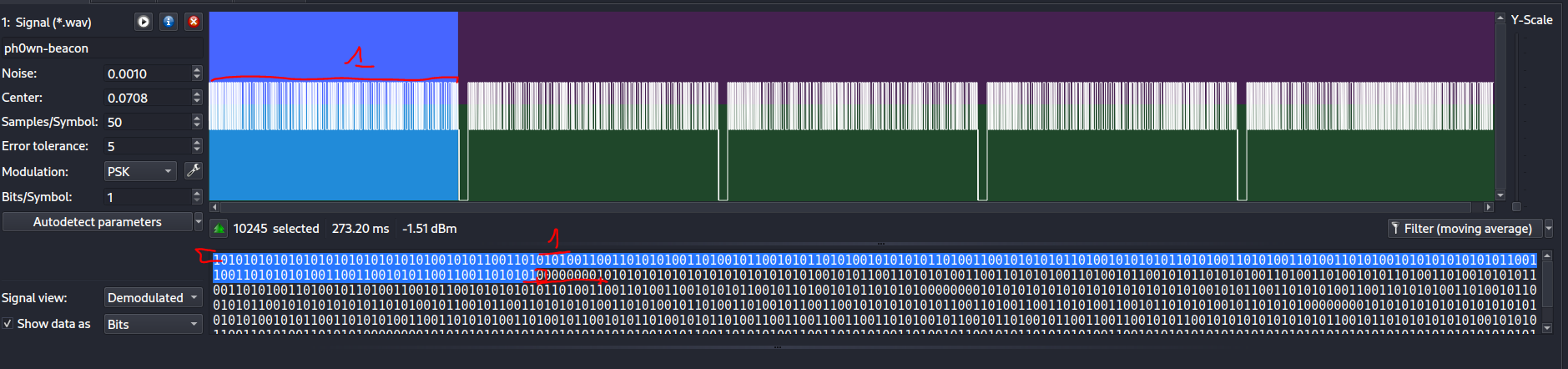

As we can see the signal is sent as short burst with a interval like in the photo, which translated as a series of ‘0’ in decoded.
In the document provided, we can see the structure of a beacon signal start with 15 1 bit:

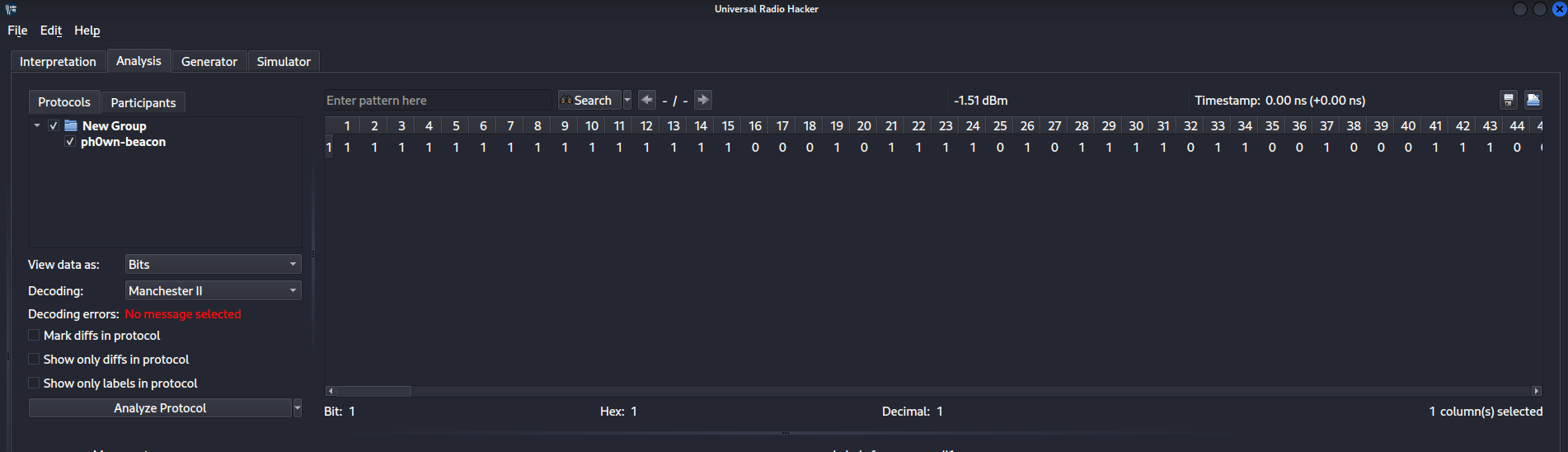

Switch to Analysis tab, we can see the 15 consecutive 1s in the signal:
In order to extract the flag, which probably located in the offset 40-83 in the signal (Check TABLE III in the document). And since the message are cut and transmitted in 5 burst, we need to separate the signal into 5 parts by 00000000 and extract the data from offset 40 to 83. It was easy since URH’s Analysis tab already provided us with the offset.
In the end we have 5 parts of the message:
011100000110100000110000011101110110111001111011011000110110000101110110011010010100000001110010010111110111001101100101011000110101010101110010011001010100010001111101
So the flag is ph0wn{cavi@r_secUreD}.
